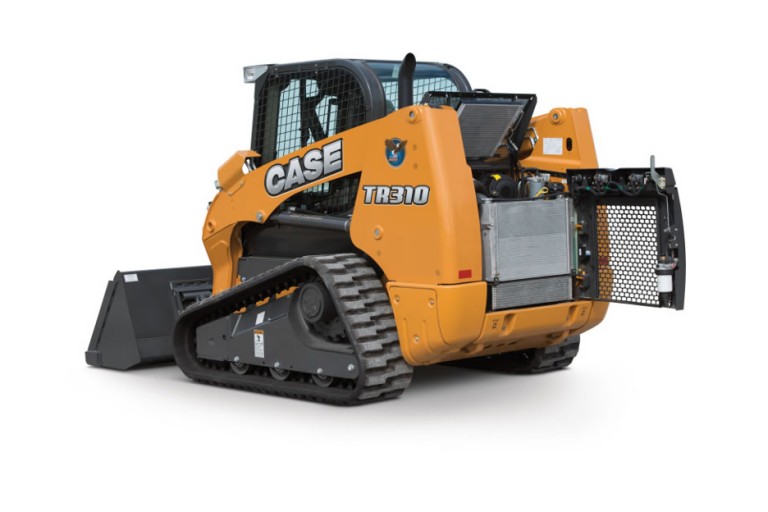

CASE Construction Equipment - TR310 Compact Track Loaders

Introducing the TR310 – the most powerful and efficient medium-frame compact track loader in our lineup. Building upon the strength and popularity of our TR270, the TR310 offers best-in-class power thanks to larger lift cylinders as well as a maintenance-free Tier 4 Final solution. It also is designed with wider tracks to improve stability and lower ground pressure down to an impressive 5.0 psi (32.5 kPa). More strength and stability – just what operators have been asking for. And it’s finally here.

Features & Benefits

PRODUCTIVITY

With S’Wave tracks that measure 15.75 in. (400 mm) across, the TR310 has a total width of 74.3 in. (1,888 mm). This wider stance provides excellent stability, better tractive effort and a low ground pressure of only 5.0 psi (32.5 kPa).

FUEL EFFICIENCY

The TR310 incorporates a PM Catalyst + DOC solution to meet Tier 4 Final emissions standards. A large, 19.5-gallon (73.8 L) fuel tank also enables this loader to run all day without refuelling.

COMFORT/VISIBILITY

Thanks to a low door threshold, the industry’s thinnest side screens and a large rear window, the TR310 offers best-in-class 360° visibility making it easy to see the attachment, tracks and all around the machine.

SERVICEABILITY

Routine service points are located at the rear of the machine so you can quickly access the engine, filters, fill points to maintain and extend the life of the machine. The tracks are designed with lifetime sealed and oil lubricated rollers and idlers.

Specs

Key specifications
Operating Weight 8,880 lb | 4027 kg
Engine Power 74 hp | 55 kW
