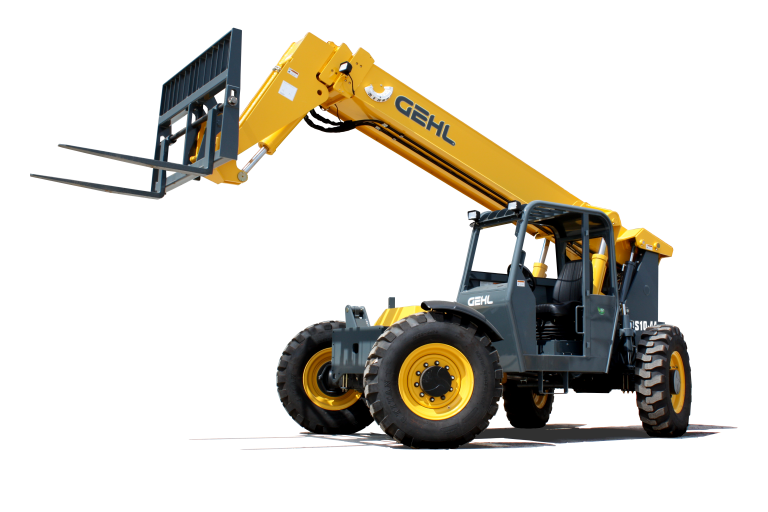

Gehl - RS10-44 GEN:2 Telehandlers

Jobsites demand superior performance, and that's what the RS Series Telescopic Handlers provide. Lifting up to 12,000 pounds (RS12-42) with lift heights up to 55 feet (RS10-55), these machines provide the extra working capacity without sacrificing the comfort and features expected in the RS Series Telescopic Handlers.

Features & Benefits

Boom tip

Boom tip lift hook option is now available as a factory-installed option or field installed option.

Levelling

Frame levelling feature adjusts 10-degrees to the left and right, enhancing performance on uneven terrain.

Visibility

FOPS is completely welded into the ROPS, providing better visibility when placing a load.

Handling

Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch.

Remote boom control

Remote Boom Control can raise/lower and extend/retract the boom, as well as start/stop the engine from the work platform or outside the cab.

Engine

Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for loading or repair. Dana four-speed power-shift transmission (4-forward/3-reverse speeds) is easy to maintain.

Hydraulics

Dual-function, pilot-assisted joystick is standard equipment. Optional tri-function, pilot-assisted joystick allows the operator to set variable tilt and auxiliary function speeds. Auto-levelling feature keeps loads level when raising/lowering the boom.

Attachments

There is a tool for every job, and the RS10-44 GEN:2 can power them all. Dynattach Quick-Attach system allows quick attachment changes with unsurpassed ease.

Specs

Key Specifications
Rated Lift Capacity 10,000 lbs. (4536 kg)
Gross Power 120 hp (89 kW)
Maximum Lift Height 44' 0" (13.4 m)
Approximate Weight 25,000 lbs. (11,567 kg)
