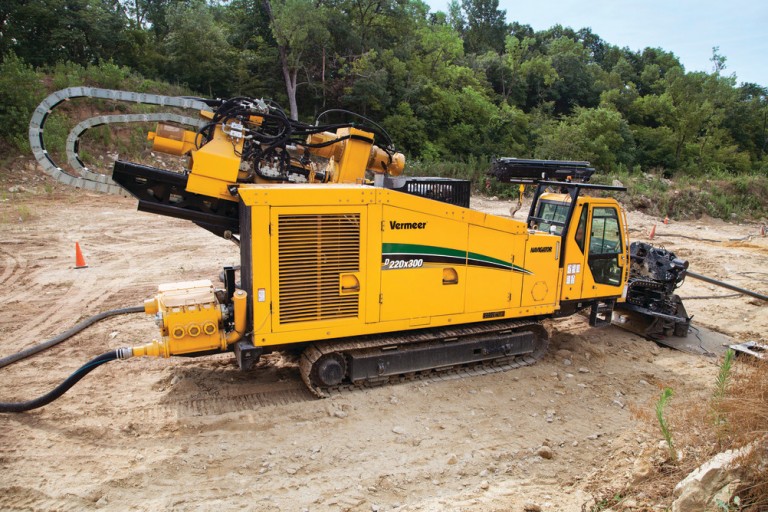

Vermeer - D220x300 S3 Horizontal Directional Drills

The D220x300 S3 Navigator® horizontal directional drill from Vermeer conquers every task and supports you at every jobsite, whether you’re working in tough rural terrain or in a congested urban setting. The self-contained D220x300 S3 has a Tier 4 Final engine and a thrust/pullback rating of 242,100 lb (1076.9 kN), offering contractors the features to maximize productivity. The D220x300 S3 also features a roomy cab, and an operator’s station with the dual joysticks found throughout the Navigator lineup, that helps ease training as operators move from drill to drill. Additionally, the drill comes with an optional mud pump.

Specs

Key Specifications
Weight 75000 lbs (34019.4 kg)
Engine Cat C-13 ACERT
Thrust 242100 lbs (1076.9 kN)
Maximum Spindle Torque (Low at Maximum Engine RPM) 30750 ft-lb (41691.5 Nm)
Minimum Bore Diameter 9" (22.9 cm)
