400M1A1 model
Mattracks

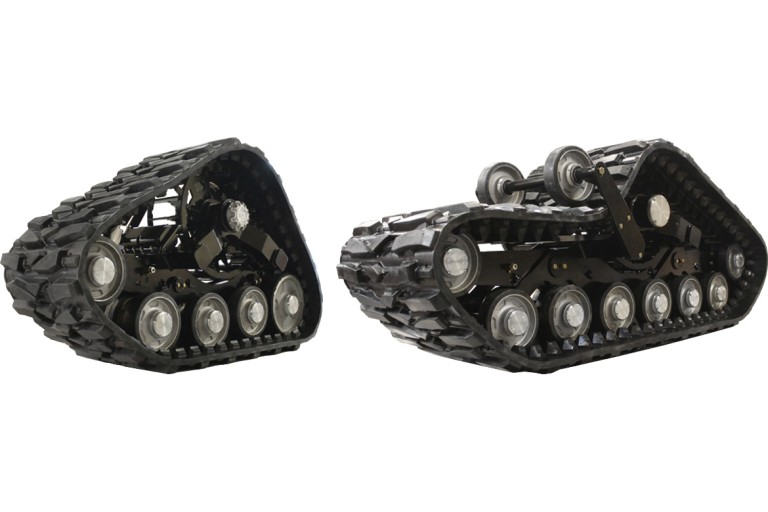

Ideal for use on commercial vehicles weighing up to 40,000 lbs that require off-road mobility. Designed for heavy loads and smooth rides, the 400M1A1 track conversion system features a 20" wide front track and 30" wide rear track. The 400 Series is a hub mounted design in order to facilitate a fast conversion from tires to tracks with little to no vehicle modification. This model also features Mattracks exclusive, patented rubber torsion anti-torque system, steering assist, and rocker suspension.
Mattracks 400 Series track conversion system adds versatility to commercial and industrial specialty vehicles such as drilling rigs, aerial devices, vacuum trucks, and other service/maintenance vehicles. Markets include, but not limited to, oil and gas, utility, agriculture, construction, mining, exploration, tourism, and search and rescue.
Specs
Exclusive Anti-Torque System | Rubber Torsion |
Frame Construction | HSLA Steel |
Internal Suspension | Concentric Pivot w/ Independent Offset Rocker Arm |
Recommended Max Gross per corner | Front: 7,500 lbs / Rear 12,500 lbs |
Track Tread Width | Front: 20" / Rear: 30" |
Wheels (Shielded & Sealed Bearings) | 2.5" Wide - Front: (11) 10", (3) 13" / Rear: (22) 10" |
Recommended Max Speed | 20 mph |
