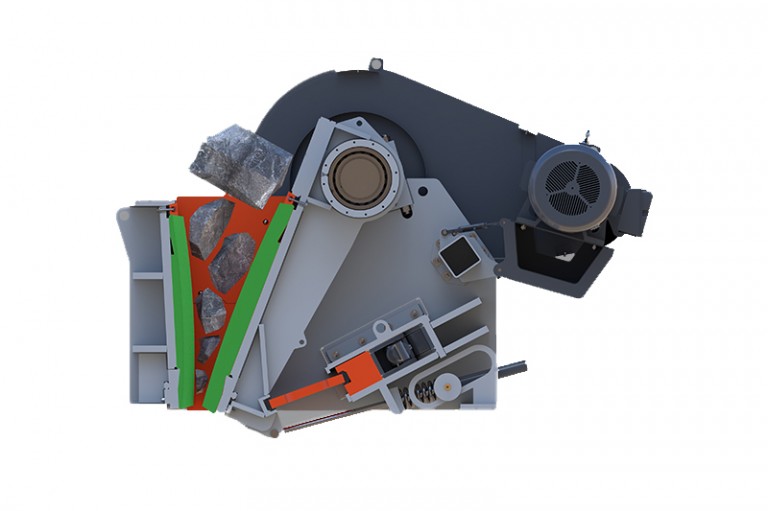

Superior’s Liberty Jaw Crusher processes aggregates in stone, concrete, asphalt, and ore applications. Functioning as a primary crusher, the unit compresses material as it travels down the increasingly narrow angle between the crusher jaws. Superior engineers designed the Liberty Jaw Crusher with a number of advantageous features including hydraulically controlled wedge and tensioning systems, pitman toe protection on jaw dies, and a frame-mounted motor that makes maintenance access easier. Additionally, the unit is backed by the industry’s first two-year standard warranty, in addition to one-year parts protection.
Specs
| Recommended Horsepower | 75 - 200 hp |
| Height (with Flywheels) | 70″ - 121" |
| Width (with Flywheels) | 75" - 99" |
| Nominal Feed Opening (Tip to Tip) | `18″ x 36″ - 36″ x 48″ |
| Length of Fixed Jaw | 36″- 72.5″ |
| Crusher Weight (without Motors) | 19,500 lbs.- 85,000 lbs. |
| Capacity Range | 50 – 190 STPH - 265 – 1000 STPH |
