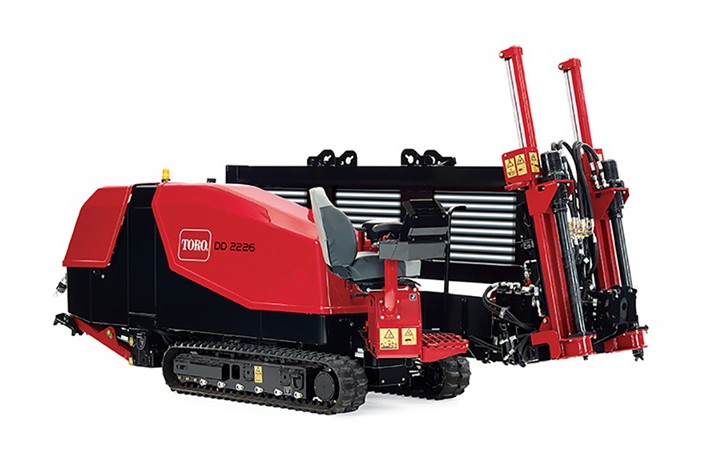

The Toro Company - DD2226 Horizontal Directional Drills

The DD2226 Directional Drill delivers powerful performance in a compact footprint: 22,000 lb of consistent thrust and pullback and 2,600 lb-ft of torque.

Specs

Key Specifications
Weight 9,485 lbs (4,302 kg) (without pipe)
Gross Power Rating 72 hp (54 kW) @2,500 RPM
Engine Yanmar® 4TNV98CT Turbo Liquid Cooled, Diesel Engine
Rated Engine Speed 2,500 RPM
Torque 2,600 ft-lbs (3,525 N-m)
Thrust/Pullback Force 22,000 lbs (10 tonnes)
Drill Pipe Outside Diameter 2.06" (63 mm)
Pipe Carrying Capacity 400' (122 m) (40 pieces)
