John Deere Power Systems' Interim Tier 4/Stage III B diesel engine lineup

John Deere Power Systems (JDPS) displayed their entire Interim Tier 4/Stage III B diesel engine lineup and announced engine models and power ratings at the Bauma 2010 show, April 19 - 25 in Munich, Germany.

Emissions regulations begin January 1, 2011 for 130 kW (174 hp) and above engines and require a 90 percent reduction in diesel particulate matter (PM) and a 50 percent reduction in nitrogen oxide (NOx) from previous Tier 3/Stage III A requirements. The Interim Tier 4/Stage III B regulation effective date for 56 kW (75 hp) to 130 kW (174 hp) engines is January 1, 2012.

For engines 56 kW (75 hp) and above, John Deere will start with their proven PowerTech Plus Tier 3/Stage III A in-line, four- and six-cylinder engine platform — which includes cooled exhaust gas recirculation (EGR) for NOx control — and add an exhaust filter for reducing PM. These engines will feature full-authority electronic controls, a four-valve cylinder head, a high-pressure fuel system, turbocharging and an air-to-air aftercooling system.

Engines between 56 kW (75 hp) and 129 kW (173 hp), will be available in 4.5L and 6.8L displacements and will be equipped with either a wastegate or variable geometry turbocharger depending upon the size of the engine.

Compared to John Deere’s larger engines, models between 56 kW (75 hp) and 129 kW (173 hp) will feature smaller exhaust filters that can be engine-mounted or remote-mounted for increased flexibility. Engines in this power range will use an in-cylinder dosing system, while John Deere’s 130 kW (174 hp) and above engines use an external dosing system.

John Deere engine models 130 kW (174 hp) and above include the 6.8L, 9.0L and 13.5L displacements.

Engine models and ratings include:
- PowerTech PWX 4.5L: 56 kW – 91 kW (75 hp – 122 hp)
- PowerTech PVX 4.5L: 93 kW – 129 kW (125 hp – 173 hp)
- PowerTech PVX 6.8L: 104 kW – 129 kW (140 hp – 173 hp)
- PowerTech PVX 6.8L: 138 kW – 187 kW (185 hp – 250 hp)
- PowerTech PSX 6.8L: 168 kW – 224 kW (225 hp – 300 hp)
- PowerTech PVX 9.0L: 187 kW – 224 kW (250 hp – 300 hp)

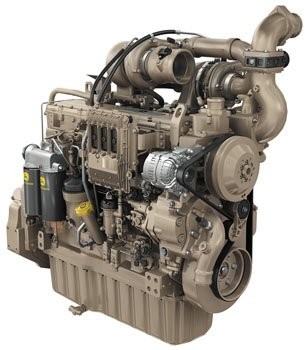

- PowerTech PSX 9.0L: 242 kW – 317 kW (325 hp – 425 hp)
- PowerTech PSX 13.5L: 298 kW – 448 kW (400 hp – 600 hp)

John Deere was the first engine manufacturer to widely commercialize cooled EGR and variable geometry turbocharger (VGT) technologies in off-highway applications, introducing them in 2005 with the start of Tier 3/Stage III A regulations. Since then, John Deere has accumulated significant operating hours with these technologies in off-highway applications and has established a proven field record of reliability.

“Our lineup of John Deere Interim Tier 4/Stage III B engines will deliver the performance, reliability, durability and low operating costs our customers have come to expect from our engines,” said John Piasecki, director of worldwide marketing, sales and customer support for JDPS.

With their 56 kW (75 hp) and above Interim Tier 4/Stage III B engines featuring cooled EGR and VGT technologies, John Deere expects to maintain fuel-economy levels similar to those achieved with their Tier 3/Stage III A engines. John Deere’s cooled EGR engines operate efficiently with ultra low-sulfur diesel as well as biodiesel blends, providing owners and operators with optimal performance and fuel-choice flexibility.

“We achieved best-in-class fuel economy with many of our Tier 3/Stage III A engines. Other engine manufacturers are just now announcing the use of these technologies in their off-highway Interim Tier 4/Stage III B product offerings,” Piasecki said.

In choosing a solution for Interim Tier 4/Stage III B, John Deere elected not to use selective catalytic reduction (SCR). John Deere’s cooled EGR and exhaust filter approach provides OEMs and end-users a proven solution with the best total fluid economy. The single-fluid approach of cooled EGR means owners and operators won’t have to incur the cost of diesel fuel plus the additional cost for diesel exhaust fluid (DEF) required by SCR systems. “For Interim Tier 4/Stage III B, we’re not only looking at fuel economy, we’re taking into consideration total fluid consumption,” Piasecki said.

Also, operation of John Deere’s cooled EGR solution does not require operator intervention. The operator doesn’t have to deal with the cost and hassle of a second fluid. SCR may be an appropriate technology for the future, when the technology is more developed for off-highway applications; however, it is not necessary for Interim Tier 4/Stage III B. “The cooled EGR and exhaust filter technology approach provides a simple and proven solution requested by our customers,” Piasecki said. “We believe cooled EGR provides our customers with the best value for Interim Tier 4/Stage III B.”

John Deere has optimized the package size for its Interim Tier 4/Stage III B engines. All John Deere’s engines with cooled EGR and an exhaust filter will require space similar to the Tier 3/Stage III A engine and muffler they replace.

John Deere is one of the few manufacturers that designs both engines and their own construction, forestry and agricultural machines, providing them with unique expertise in integrating and servicing the engine, drivetrain, exhaust filter, cooling package and electronic control unit (ECU) for optimized efficiency. This integrated process maximizes performance, operator convenience, fuel economy and overall value for John Deere machine owners as well as John Deere OEM customers.

Engines below 56 kW (75 hp), which include the John Deere PowerTech E 2.4L and PowerTech M 2.4L and 4.5L engines, meet Interim Tier 4 and Stage III A emissions regulations without the use of cooled EGR or an exhaust filter. PowerTech M 2.4L and 4.5L engines feature a 2-valve cylinder head, a fixed-geometry turbocharger, mechanical unit pump fuel system (2.4L) and mechanical rotary fuel system (4.5L). PowerTech E 2.4L engines feature a similar 2-valve cylinder head and a fixed geometry turbocharger, but add full-authority electronic engine controls, an electronic unit pump fuel system, and are air-to-air-aftercooled.

Engine models and ratings in this power range include:
- PowerTech M 2.4L: 36 kW (49 hp)
- PowerTech E 2.4L: 45 kW – 49 kW (60 hp – 66 hp)
- PowerTech M 4.5L: 55 kW (74 hp)

John Deere’s full lineup of Interim Tier 4/Stage III B diesel engines is built upon simple, fuel-efficient and field-proven technologies enabling John Deere to meet increasingly stringent emissions regulations without sacrificing performance, reliability, durability or operator convenience. And John Deere’s worldwide dealer network of over 4,000 service locations is trained and prepared to fully support customers and their Interim Tier 4/Stage III B engines.
