Hitachi Global Air Power - 375 AF System Tier 3 family Compressors

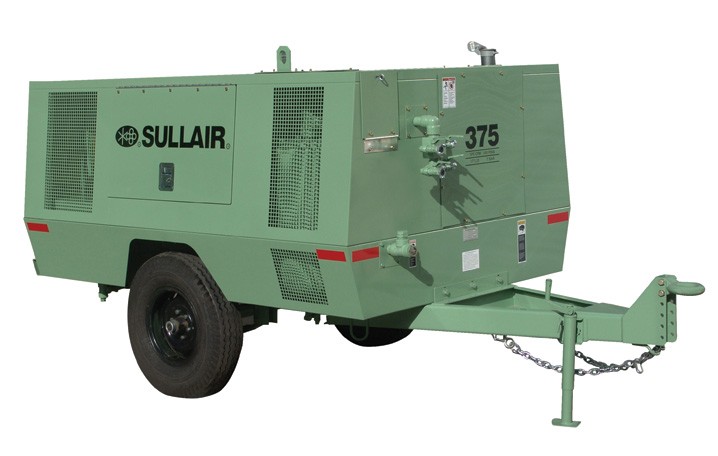

Sullair 375 AF System Tier 3 family rotary screw portable air compressors deliver 300 to 425 cfm at 100 to 200 psig or 8.5 to 12.0 m3/min at 6.9 to 13.8 bar of aftercooled and filtered compressed air that meets or exceeds ISO 8573-1: Class 1.7.1 quality standards. The AF System consists of a specially designed Sullair portable compressor with a built-in high-capacity, low-approach aftercooler, a water-condensate trap and a highly efficient contaminant removal system.

Specs

Key specifications
Model 300HH 300 cfm (8.5 m3/min, 142 L/s), 200 psig (13.8 bar)
Model 375 375 cfm (10.6 m3/min, 177 L/s), 100 psig (6.9 bar)
Model 375H 375 cfm (10.6 m3/min, 177 L/s), 150 psig (10.3 bar)
Model 375HH 375 cfm (10.6 m3/min, 177 L/s), 200 psig (13.8 bar)
Model 425 425 cfm (12.0 m3/min, 201 L/s), 100 psig (6.9 bar)
Model 425H 425 cfm (12.0 m3/min, 201 L/s), 150 psig (10.3 bar)
Available Engines Tier 3 Caterpillar 117 hp (87 kW), Tier 3 Caterpillar 130 hp (97 kW), or Tier 3 John Deere 140 hp (104 kW)
