Hitachi Global Air Power - Sullair High Pressure Tier 3 family Compressors

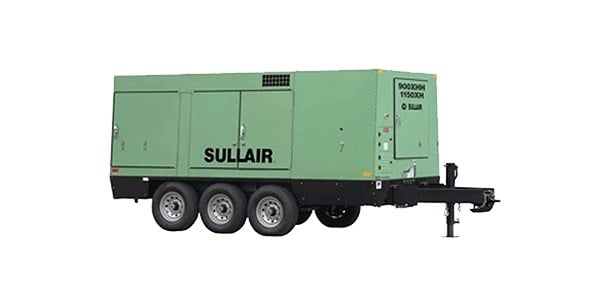

Sullair High Pressure Tier 3 family rotary screw portable air compressors deliver 750 to 1150 cfm at 350 to 500 psig or 21.2 to 32.6 m3/min at 24.1 to 34.5 bar. Unit is designed for reliability and total accessibility. Powered by a Tier 3 emissions compliant Caterpillar engine. Mounting options are tri-axle, four-wheel steerable and less running gear. Enclosure is made of durable powder coated Galvanneal sheet metal. Other features include a leaf spring suspension, wheel bearing grease fittings, and a lockable curbside instrument panel. The compressors features a pneumatic inlet valve and 0 to 100% capacity control.

Specs

Key specifications
Model 750XHH 750 cfm (21.2 m3/min, 354 L/s) at 500 psig (34.5 bar)
Model 900XH 900 cfm (25.5 m3/min, 425 L/s) at 350 psig (24.1 bar)
Model 900XHH 900 cfm (25.5 m3/min, 425 L/s) at 500 psig (34.5 bar)
Model 1150XH 1150 cfm (32.6 m3/min, 543 L/s) at 350 psig (24.1 bar)
Available Engines Tier 3 Caterpillar 475 hp (354 kW) or Tier 3 Caterpillar 540 hp (403 kW)
