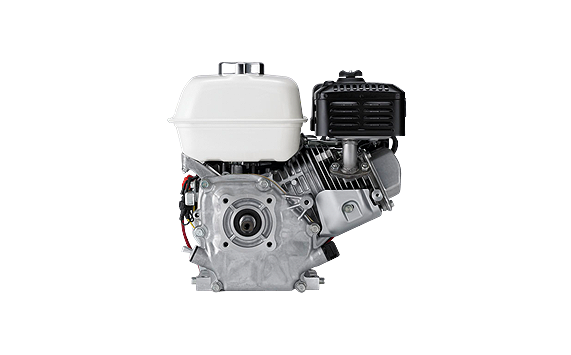

Honda Engines - GX200 Crank Shaft Engines

The GX200 offers lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance. The current GX200 essentially matches the dimensions of the previous models, so no modifications to existing equipment designs are necessary.

Specs

Key Specifications
Engine Type Air-cooled 4-stroke OHV
Displacement 196 cm3
Net Power Output 5.5 HP (4.1 kW) @ 3,600 rpm
Net Torque 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
Fuel Tank Capacity 3.1 litres (3.3 U.S. qts)
Oil Capacity 0.6 litres (0.63 U.S. qts)
Dry Weight 16.1 kg (35 lbs)
