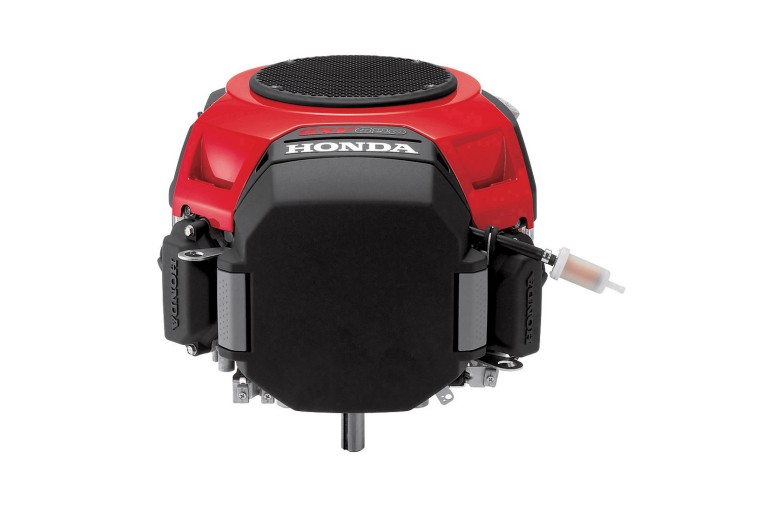

Honda Engines - GXV690 Crank Shaft Engines

Honda V-twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficency. Not to mention a 3 year warranty.

Specs

Key Specifications
Engine Type Air-cooled 4-stroke OHC
Bore x Stroke 78 X 72 mm
Displacement 688 cm3
Net Power Output 22.1 HP (16.5 kW) @ 3,600 rpm
Net Torque 35.6 lb-ft (48.3 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
